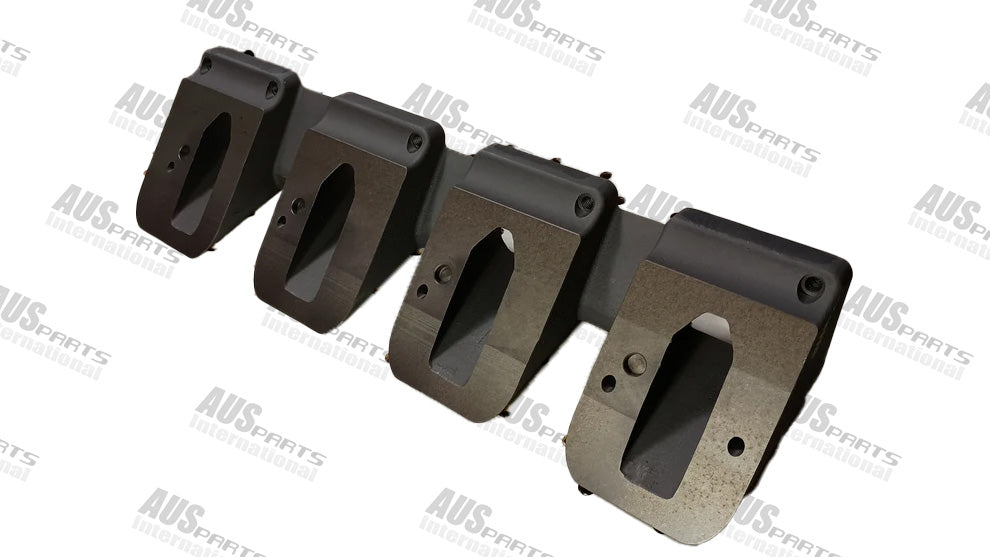

Hellcat Supercharger to LS cylinder head adaptors - Cathedral port

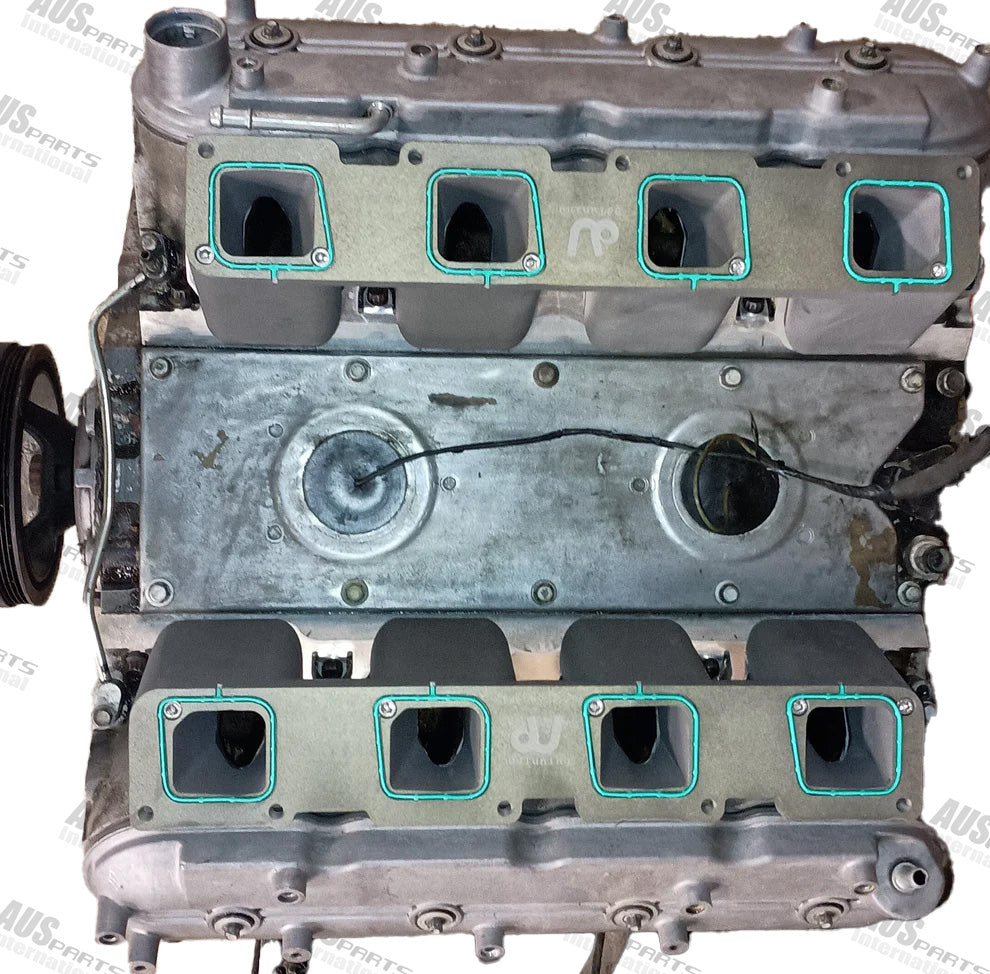

This adapter kit allows a Hellcat supercharger to be installed on Gen III and Gen IV LS cathedral-port cylinder heads. These adapter plates provide a sealed and properly aligned transition between the Hellcat supercharger and LS cathedral-port intake ports.

Fitment

• Designed for Hellcat superchargers
• Fits Gen III and Gen IV LS engines
• Compatible with cathedral-port LS heads
• Does NOT fit rectangle-port LS heads

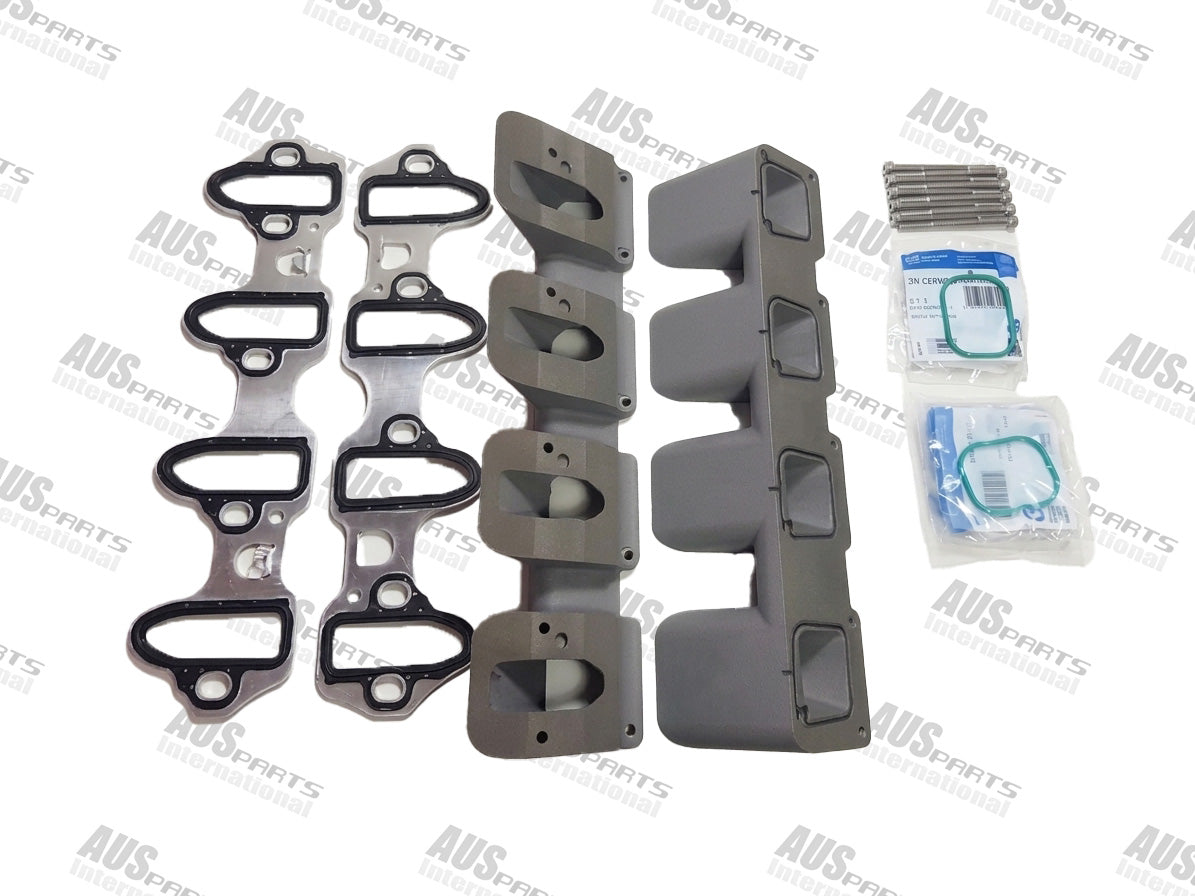

What’s Included

• Aluminum adapter plates
• Mounting hardware (10x M6x90mm socket cap bolts)
• Gaskets for cylinder heads and supercharger (8x GM 12626354 and 1x 92211)

Specifications

• Material: A356-T6 Anodized Aluminum
• Port style: Cathedral
• Engine compatibility: Gen III / Gen IV LS with Cathedral Port Heads
• Application: Hellcat supercharger conversion
• Machined for proper port alignment and sealing


Our Own Hellcat Setup:

At AusParts International, we don’t just sell you parts, we guarantee you a setup works. That’s why we built our own Hellcat-supercharged, LS-swapped Nissan 300ZX drift car to prove it.

Our car was built for R&D and while we may have kept it somewhat conservative, our hellcat setup still produces 700 wheel horsepower (520 kW) at just 10 psi of boost, with 550 lb-ft (750 Nm) of torque delivered across the whole rev range from just 2,500 rpm.

This simple, budget-friendly combination reliably produces bulk horsepower and torque with plenty of room for more power. The Hellcat-LS setup walks the fine line of being super powerful without being hard to drive. A big part of that is due to our electronic bypass valve controllers providing smooth linear power making for an easy, consistent driving experience. If you want cheap bulk horsepower and an unmistakable sound, a Hellcat blower is the way to go.

Read Our Hellcat 300ZX Build Write-Up

Have technical questions or need guidance with your build? Contact us at Sales@AusPartsInternational.com.
